主要特性和優勢
- 降低信號衰減可產生低開關損耗
- 降低總諧波失真可實現高品質音頻切換
- 支持模擬傳感器信號多路復用 - 減少ADC的數量
- 控制信號接口至低電壓控制器的集成式電平轉換
- 低導通電阻和導通電阻平坦度
- 低開關泄漏
- 寬電源電壓
- 低輸入閾值輸入選項
- 過壓容限選項
- 高ESD保護，符合IEC61000標準
.jpg)
應用
- 筆記本電腦和PC
- USB端口/集線器、擴展塢和臺式機
- 機頂盒
- 高清電視
- VoIP電話
- 打印機
- 光學插座保護
- 限流電路
Featured documents
Latest news and blogs
產品
| 型號 | 描述 | 狀態 | 快速訪問 |
|---|---|---|---|
| NPS1000 | 0.5 V to 1.0 V, 1.5 A peak, 11 mΩ, load switch | ACT |
|
| NPS1000UP | 0.5 V to 1.0 V, 1.5 A peak, 11 mΩ, load switch | Production | |
| NPS1001 | 0.5 V to 1.8 V, 1.5 A peak, 12 mΩ, load switch | ACT |
|
| NPS1001UP | 0.5 V to 1.8 V, 1.5 A peak, 12 mΩ, load switch | Production | |
| NPS4001 | 5.5 V, 55 mOhm load switch with current limitation | ACT |
|
| NPS4001GV | 5.5 V, 55 mOhm load switch with current limitation | Production | |
| NPS4053 | 5.5 V, 55 mOhm load switch with precision adjustable current limit | ACT |
|
| NPS4053GH | 5.5 V, 55 mOhm load switch with precision adjustable current limit | Production | |
| NPS4053GV | 5.5 V, 55 mOhm load switch with precision adjustable current limit | Production | |
| NPS4053-Q100 | 5.5 V, 55 mOhm load switch with precision adjustable current limit | ACT |
|
| NPS4053GH-Q100 | 5.5 V, 55 mOhm load switch with precision adjustable current limit | Production | |
| NPS4053GV-Q100 | 5.5 V, 55 mOhm load switch with precision adjustable current limit | Production | |
| NPS4069 | 5.5 V, 55 mOhm load switch with current limitation | ACT |
|
| NPS4069GV | 5.5 V, 55 mOhm load switch with current limitation | Production |
Visit our documentation center for all documentation
Application note (2) |
|||
|---|---|---|---|
| 文件名稱 | 標題 | 類型 | 日期 |
| AN90052.pdf | Nexperia load switch ICs compared to discrete solutions | Application note | 2024-04-09 |
| AN90045.pdf | Nexperia load switch ICs | Application note | 2023-08-08 |
Leaflet (1) |
|||
| 文件名稱 | 標題 | 類型 | 日期 |

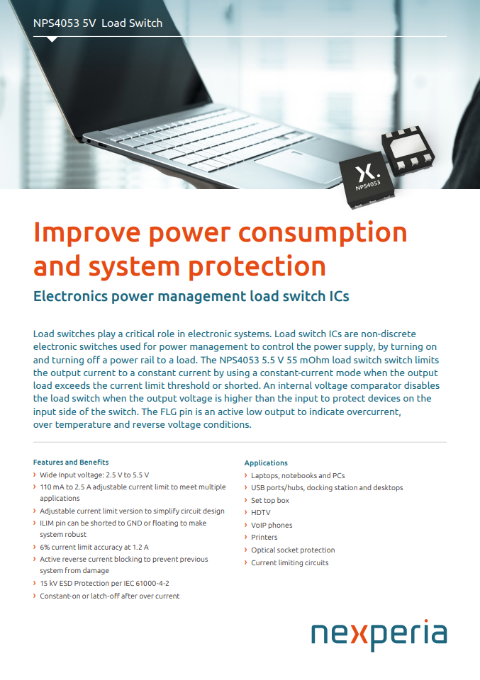

| nexperia_leaflet_electronics_power_management_load_switch.pdf | NPS4053 load switch leaflet | Leaflet | 2024-03-29 |
Outline 3d (1) |
|||
| 文件名稱 | 標題 | 類型 | 日期 |

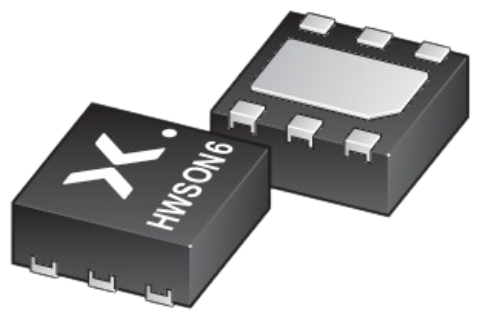

| sot8044-1_3d.png | HWSON6; SOT8044-1; Plastic thermal enhanced very very thin Small Outline packages, no leads; 6 terminals; 0.65 mm pitch; 2.0 mm x 2.0 mm x 0.75 mm body | Outline 3d | 2022-06-23 |
