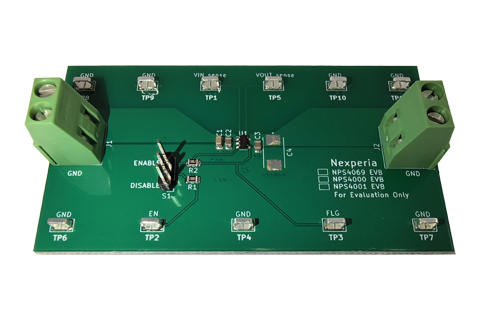

NEVB-NPS4001 load switch evaluation board
The NEVB-NPS4001 Load Switch Evaluation Module is an advanced tool designed to facilitate the evaluation and testing of the NPS4001 load switch. This module, constructed on a compact 2-layer printed circuit board (PCB), provides a robust platform for engineers and designers to assess the performance, efficiency, and reliability of the NPS4001 load switch in various applications.
NEVB-NPS4001 load switch evaluation board
Key features & benefits
• Input operating voltage range (VIN): 2.5 V to 5.5 V
• Rated currents: 2A (NPS4001)
• ON resistance (RDS(on)):
• VIN = 5.5 V: 55 m? (typical)
• VIN = 3.3 V: 65 m? (typical)
• VIN = 2.5 V: 80 m? (typical)
• Constant current during current limit
• No body diode when disabled (no current path from pin OUT to pin IN)
• Active reverse voltage protection
• Built in soft start
• Convenient connections via test points and INPUT/OUTPUT terminals
板上的產品 (1)
| Type number | Description | Status | Quick access | |
|---|---|---|---|---|
|
NPS4001GV | 5.5 V, 55 mOhm load switch with current limitation | Production |
相關板塊 (2)
| Board | Description | Type | Quick links | Shop link | |
|---|---|---|---|---|---|
|

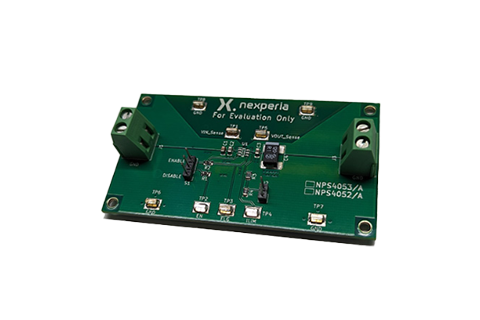

nps4053-load-switch-evaluation-board | NPS4053 load switch evaluation board | Evaluation board | 訂單 | |
|
nevb-nps4069-load-switch-evaluation-board | NEVB-NPS4069 load switch evaluation board | Evaluation board | 訂單 |
板上的產品 (1)
| Type number | Description | Status | Quick access | |
|---|---|---|---|---|
|
|
NPS4001GV | 5.5 V, 55 mOhm load switch with current limitation | Production |
相關板塊 (2)
| Board | Description | Type | Quick links | Shop link | |
|---|---|---|---|---|---|
|
|
nps4053-load-switch-evaluation-board | NPS4053 load switch evaluation board | Evaluation board | 訂單 | |
|
|
nevb-nps4069-load-switch-evaluation-board | NEVB-NPS4069 load switch evaluation board | Evaluation board | 訂單 |
文檔 (1)
| 文件名稱 | 標題 | 類型 | 日期 |
|---|---|---|---|
| UM90030 | NEVB-NPS4069 / NEVB-NPS4001 load switch evaluation board | User manual | 2024-04-04 |
